Product Forms

Product FormsProdProcForms

Product Forms Assistance



Verification

- Min/Max Size Range
• 36 Gage (0.00425” OD X 0.0025” ID)
• 6 Gage (0.203” OD X 0.173” ID)
- ID surface better than 25 RA
- Custom Material Properties
- Min/Max Size Range
• 0.001” Diameter (Sub mil diameters on some materials)
• 0.093” Diameter
- Custom Mechanical Properties
- Full Range of Spooling Options
- Min/Max Size Range
• 0.062” Diameter
• 0.500” Diameter (most materials)
- Drawn or Centerless Ground Surface Finishes
- Diameter Tolerances to +/- 0.0001”

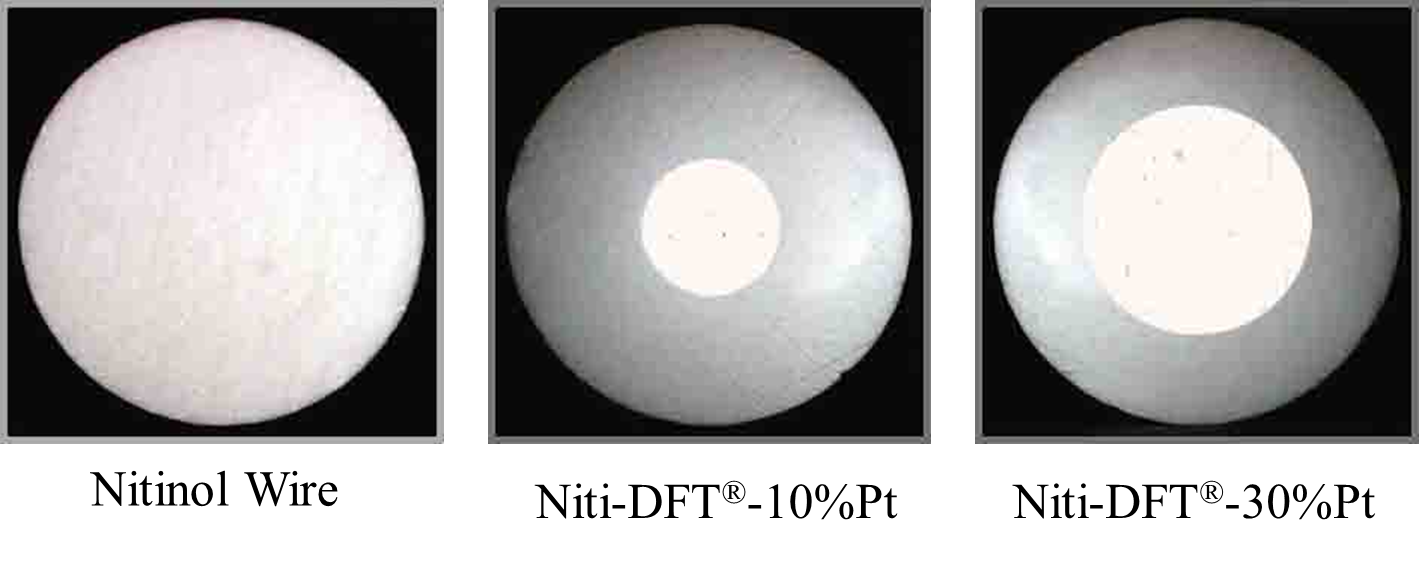

DFT- Min/Max Size Range
• 0.001”/0.003” Diameter
- Sheath Materials: 35NLT®, MP35N®, 316LVM, Nitinol, FWM 1058®, Titanium Alloys
- Core Materials: Au, Ag, Pt, Ta, W, Nitinol, Titanium and Platinum Alloys
- Fill Ratios up to 50%
- Rectangular Cross and Custom Cross Sections
- Thickness Ranges 0.0007” – 0.040”
- Natural, Drawn and Square Edge
- Turks Head Radius to 0.003”
- Standard and Custom Strands
- Round Sizes from 0.007” to 0.125” Diameter
HHS- Single, Dual and Triple Layer
- Min/Max Size Range
• 0.0025” OD X 0.001” ID
• 0.160” OD X 0.130” ID
- Design Optimization for Torque-ability and Flexibility
- Continuous coating of any spooled wire
- Round or Flat Wire
- Coating Thickness: 4 to 10 µm
- Color: Blue, Green, Gray, Clear
- Gamma or ETO Sterilization Grades
- Not Intended For Human Implantation
